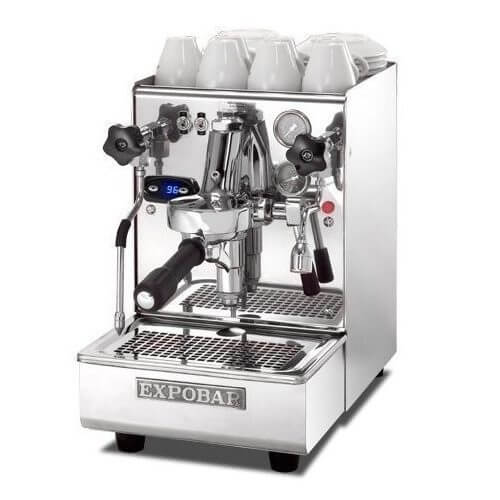

EXPOBAR BREWTUS ESPRESSO MACHINE – DOUBLE BOILER ROTARY PUMP (PLUMB IN OR CONNECT TO EXTERNAL WATER TANK)

The Brewtus espresso machine, is perhaps one of the most popular models in present day.
It is a double boiler, meaning it has an individual boiler for steaming and brewing.

INTRODUCTION
http://www.youtube.com/watch?v=K3IUqHdEkR0

STABILITY TEST
https://youtu.be/5cMiGkd7Rzk

Extraction

The Expobar’s E61 groupheads are designed with a patent design, a modification in its shower screen to allow approximately 7 seconds of preinfusion every time. This results in slightly more uniform shots.

The thermosyphon system will cycle hot water to the grouphead just like any E61 system.

Double Pressure Gauge

Features an important brew gauge  useful for identifying any anomalies during brewing. It is not important to have a steam boiler gauge when there’s PID, but Expobar adds it anyway.

Thermal stability

The Expobar Brewtus espresso machine features a PID temperature controller.
As at different temperature, coffee forms different profiles of aroma.
The PID allows the user to take control and customise the intensity of the bitterness and levels of the sourness, as well what types of aroma blossoms out.
Temperature is also kept at a very stable temperature range without much fluctuation. This might be good for users who value consistency.

Since it has two boilers, it has a much larger capacity and users can repeat many shots before worrying about temperature fluctuation from displaced hot water.

Preheated water feature:
All water to the brew boiler are pre-heated by the steam boiler before entering. This ensures that water entering the brew boiler is hot which replaces hot water exiting the group, reducing temperature swings in the brew boiler.

Rotary pump

Strong industrial grade pump to allow heavy duty of usage, back to back. Moving stream of water smoothly with weak tremors that disrupt channelling.

Usability

New users may enjoy using the Brewtus.

It is attached to a single tip steam wand, to allow more time for frothing, very handy for amateurs.
Since it is running on a heat exchanger system, users can froth milk and brew coffee at the same time.

Copper boiler.

A safe material with natural anti-microbial properties to continuously kill greater than 99.9% of bacteria that cause hospital-acquired infections, keeping water in the boiler always potable. One of the most conductive metal on earth, making the machine very efficient in starting up and recovering from lost heat. Will never rust like Stainless Steel, or release lead from Brass, will only oxidise and increase its antimicrobial properties as its age.

Commercial features

For users who wish for more additional features, they will be pleased with what Expobar Brewtus can offer.

The drip tray is huge, which is always useful to collect more drips before emptying.
Not only that, user can drill a hole through the drip tray and connect to a drainage system to collect endless amount of drips.

The Expobar Brewtus allows user to draw water either from a water network directly, or through its water tank.
If it’s connected to a water network*, the user won’t need to top up the water tank anymore.

This will mean that the Expobar Brewtus is capable for continuous operation without worrying that the water tank runs dry, or overflowing its drip tray.

*Due to potentially different fitting, compatibility and pressure stability issues, we do not provide plumbing services. It should be carried out by a qualified plumber. Please refer to the user manual to change the machine’s mode to switch drawing water from either tank or water network.

Vibration or Rotary pump?

The Rotary pump is able to last longer than a Vibration pump under correct use.
It has no water tank but it is also able to draw water from a big external water tank or plumbed in.

If it’s plumbed in, water must be soft and below 4 bars. Unstable inlet pressure will lead to unstable brew pressure.

Reviews: Rating: 9.8 / 10    Rating: 9.8 / 10    Rating: 9.4 / 10     Rating: 9.2 / 10    Rating: 9.6 / 10    Rating: 9.2 / 10     Rating: 9.2 / 10

Warning:
Be careful of hot surfaces, water and steam at all time.

Specifications.

Grouphead..	Commercial Grade E61 Grouphead
Boiler Type..	Double Boiler
Pump type..	Commercial Grade Rotary Pump
Quick Start Up..	No.
Quick Steam..	Yes
Operation..	Lever
Indicator Lights..	On, off, heating, low water
Boiler Capacity..	1.5 Litres (Brew), 1.5 Litres (Steam)
Water Tank Capacity..	0 Litres (Plumb in only or connect to external water tank)
Water Tank Access..	Not Available
Plumb in connection..	Yes.
Pressure Gauge..	Steam & Brew
Internal Control..	Adjustable PID( Brew), Pressurestat (Steam)
Boiler Construction..	Copper
Chassis Construction..	Stainless Steel
Steam/Water Valve Type..	Compression
Low Water Cut Off..	Yes.
Low Water Indication..	Light
Heat Resistant Wands..	Yes.
Cup Warmer..	Yes.
Number of Portafilter Holders..	2 (Double and Single with baskets)
Free Accessories..	Rubber Blind Filter.
Free Cleaners	100 Tablets Of Pulycaff Grouphead Detergent 1.35g and 1 25ml bottle of Pulymilk Frother Cleaner
Place of Production..	Spain
Place of Assembly..	Shanghai
Dimension..	260 x 450 x 400 MM
Net Weight..	26.2 KG
Gross Weight..	28.2 KG
Power Supply..	230V
Nominal Power..	1200W-2055W
Warranty..	3 Months

Link to official website: Brewtus Double Boiler
